Description

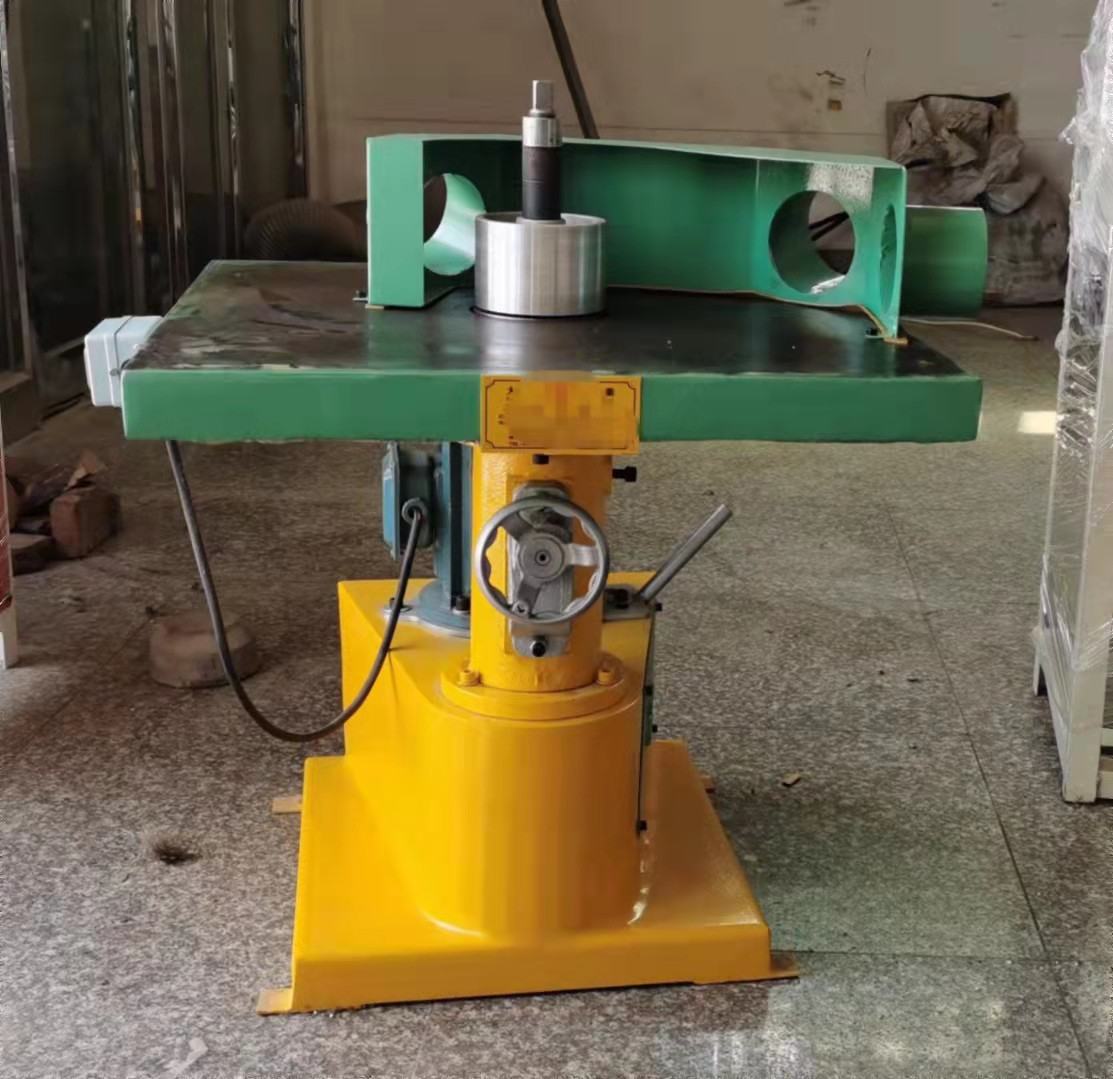

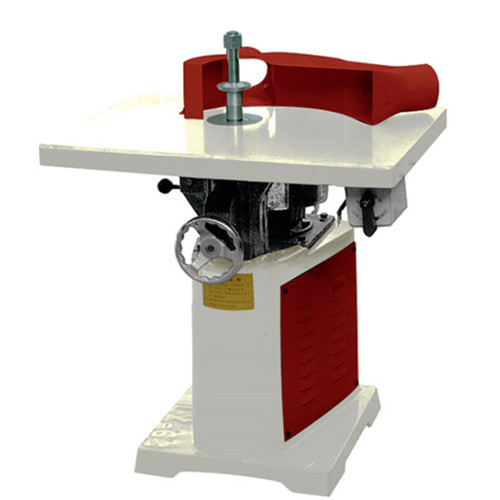

EVA slipper sole edge roughing grinding machine
The machine mainly used for EVA sole grinding, and it could grinding many pieces at one time .It work for irregular shape ,and it is also suitable for other shoe sole edge grinding with deeper thickness
| Model | DM-408 |
| Working voltage | 110v-380v |
| Motor power | 3HP |
| Rotating amount of the main axle | 8000-12000round/min |
| Length of the using position of the main axle | 150mm |
| Diameter of the using posmon of the main axle | 25.4mm(1 inch) |
| Route of the main axle | 90mm |
| the height of workstation from the ground | 810mm |
| Desk area | 540*730mm |
| Dimensions | 730*700*1000mm |
| Packing size | 830*800*1150mm |
| N.W. | 210kg |
| G.W. | 250kg |
