Description
Application for Logo Pad Printer
⦁ Electric, switch, socket, fuse, circuit breaker, button, knob
⦁ Plastic; Hanger, plug, brush, glasses, glass cover
⦁ Automotive; plastic and metal parts, hoses.
⦁ Promotional items; hotel eqipments, pen/pencil, lighter, bottle, cap, lipstick, nail polish bottle
⦁ Electric, switch, socket, fuse, circuit breaker, button, knob
⦁ Plastic; Hanger, plug, brush, glasses, glass cover
⦁ Automotive; plastic and metal parts, hoses.
⦁ Promotional items; hotel eqipments, pen/pencil, lighter, bottle, cap, lipstick, nail polish bottle
Main Features for Logo Pad Printer
1. Easy to operate, user friendly
2. XYR micro-adjust plate holder assemblies
3.Single-point fixture mounting with adjustable hold-down clamps
4. Printing on surfaces of any shape, with precise registration and high speed

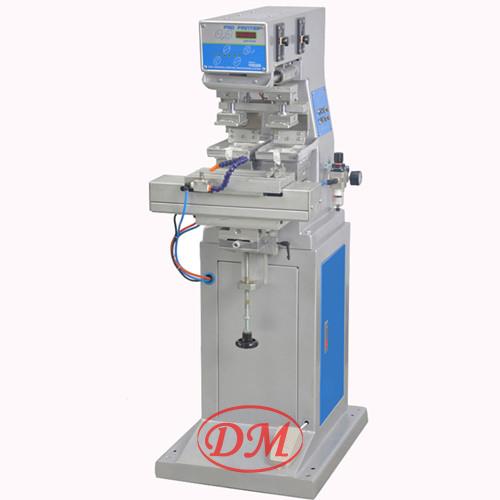

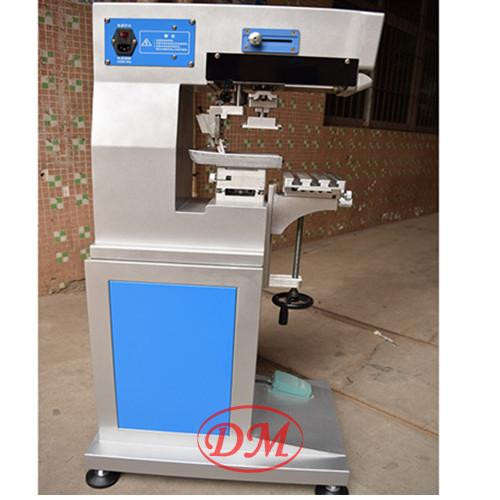

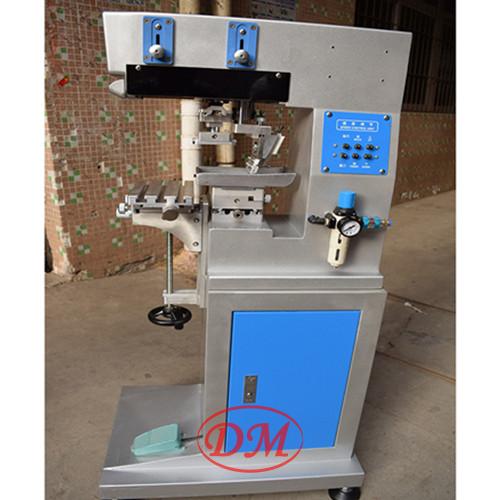

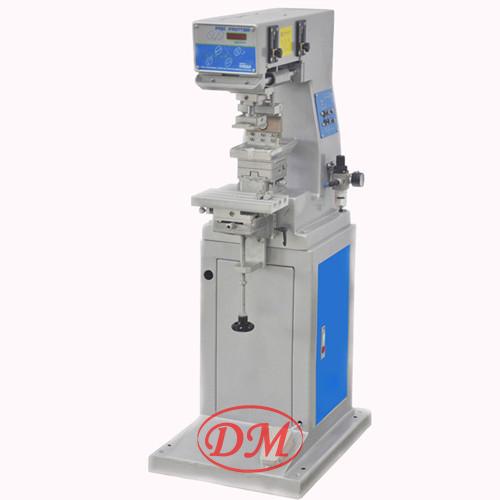

Pad pringting machine 1/2/3/4 colors
| Model | DM-125S | DM-125D | DM-175S | DM-175D |
|
|
single color | double color | single color | double color |
| Plate size | 100*100MM | 100*100MM | 100*150MM | 100*150MM |
| Max printing size | 65*65MM | 65*65MM | 60*120MM | 60*120MM |
| Max printing Speed | 1500-2000pcs /hour | 800-1500pcs/h | 1300-1500pcs/h | 800-1000pcs/h |
| Power | 220V/110V 50W | |||
| Drive | Electro-Pneumatic | |||
| Compressed Air | 0.4-0.6MPA | |||
| Dimensions (L*W*H) | 64*42*126cm | 60*53*126cm | 70*43*145cm | 70*55*145CM |
| Weight | 90KG | 106KG | 136KG | 153KG |
