Description

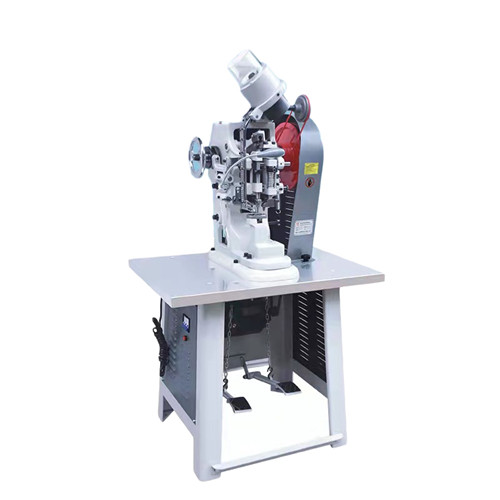

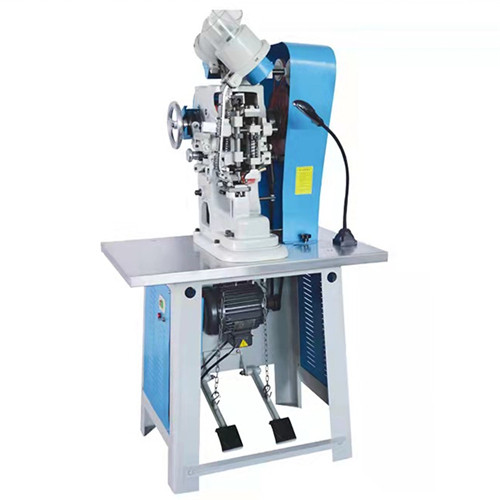

Single side and double sides automatic punching eyeleting machine

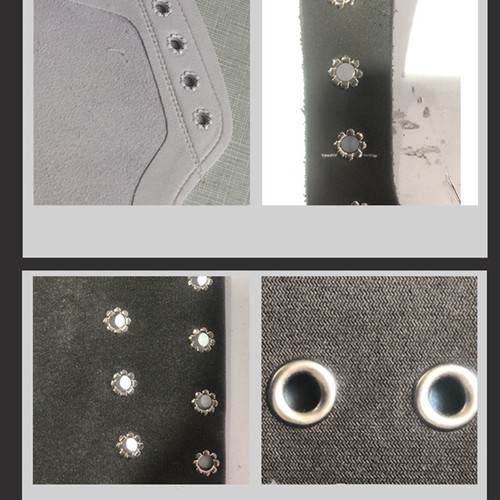

This machine is suitable for single or continuous eyelets punching. The punching and riveting works are completed in one time. It is suitable for single-side and double-side eyelets in industries such as shoes, clothing, leather goods, paper bags, etc.
1.The distance between two eyelets can be adjusted at will as required.
2.Reliable performance ensures the riveting quality of products. 3.Easy operation. Efficiency is 8-15 times of manual operation.
Main technical parameters
|
Model |
DM-3A |
DM-95 |
|
|
Single side |
Double sides |
|
Hole diameter |
12-35MM |
12-35MM |
|
Power |
0.55mm |
0.55mm |
|
Eyelet specification |
1.8mm≤inner diameter≤8mm |
1.8mm≤inner diameter≤8mm |
|
|
height of eyelet≥2.2mm |
height of eyelet≥2.2mm |
|
Speed |
220times/min |
220times/min |
|
Dimensions |
85*58*156cm |
85*58*156cm |
|
N.W. |
200kgs |
230kgs |
|
G.W. |
250KGS |
280kgs |
