Description
1 hot 1 cold toe cap forming machine
1. The hot stamping temperature, stroke and steam can be adjusted arbitrarily, fully matching the softening operation of the upper
2. The toe shaping cold mold adopts cold-to-mold sealing and circulating cooling, the cooling effect is fast, the distribution is even.
3. Equipped with a pull-down and overturning positioning device, which can precisely adjust the cylinder speed and the pull-down position of the upper .
4.Suitable for men’s and women's shoes and sports shoes, work shoes, especially for big shoes.
Main technical parameters

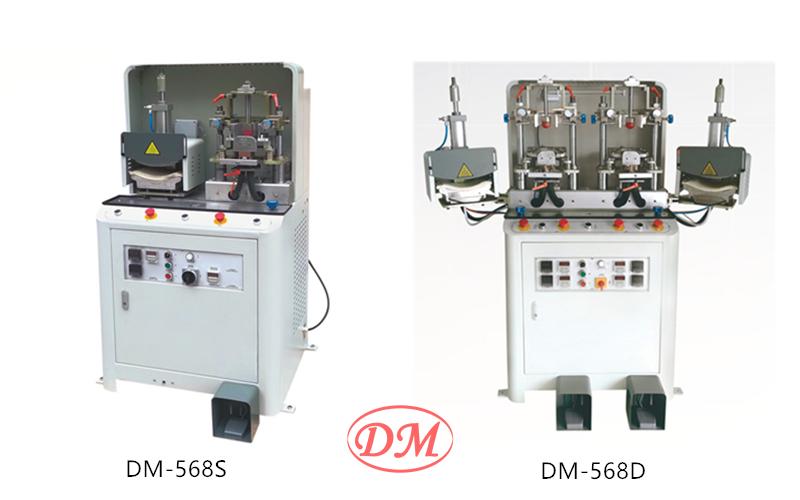

| Model | DM-568S | DM-568D |
| Motor power | 2.7kw | 4.5KW |
| Output | 400-500 pairs /day | 800-1000pairs/day |
| Dimensions | 90*86*150 cm | 86*153*150cm |
| Air pressure | 6 bar | 6 bar |
| Packing size | 95*88*165cm | 96*163*165cm |
|
|
1.4 CBM | 2.6CBM |
| N.W. | 200 kgs | 300kgs |
| G.W. | 250kgs | 350kgs |
