Description

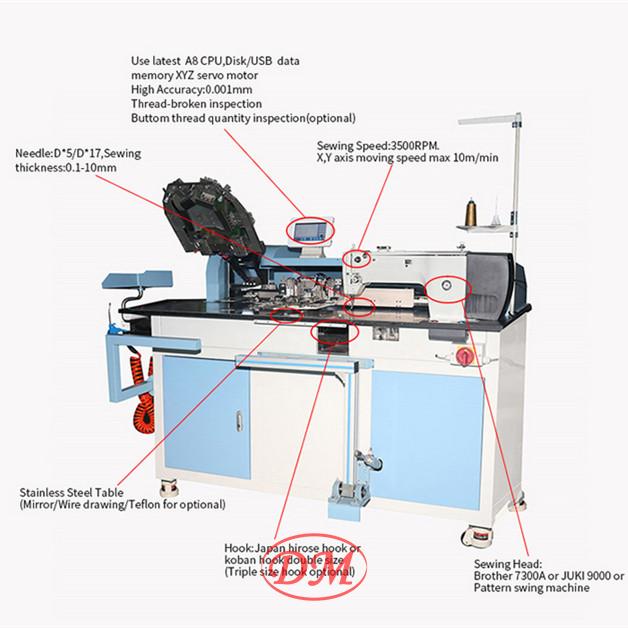

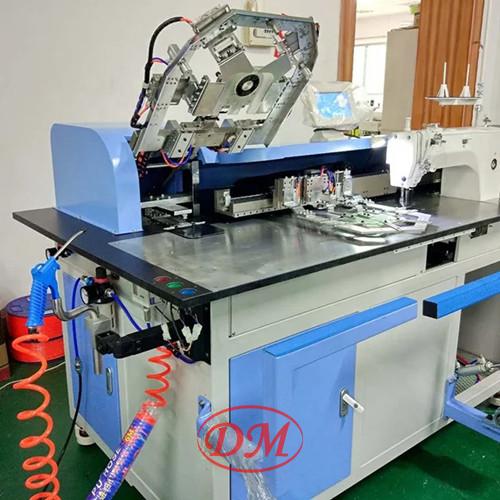

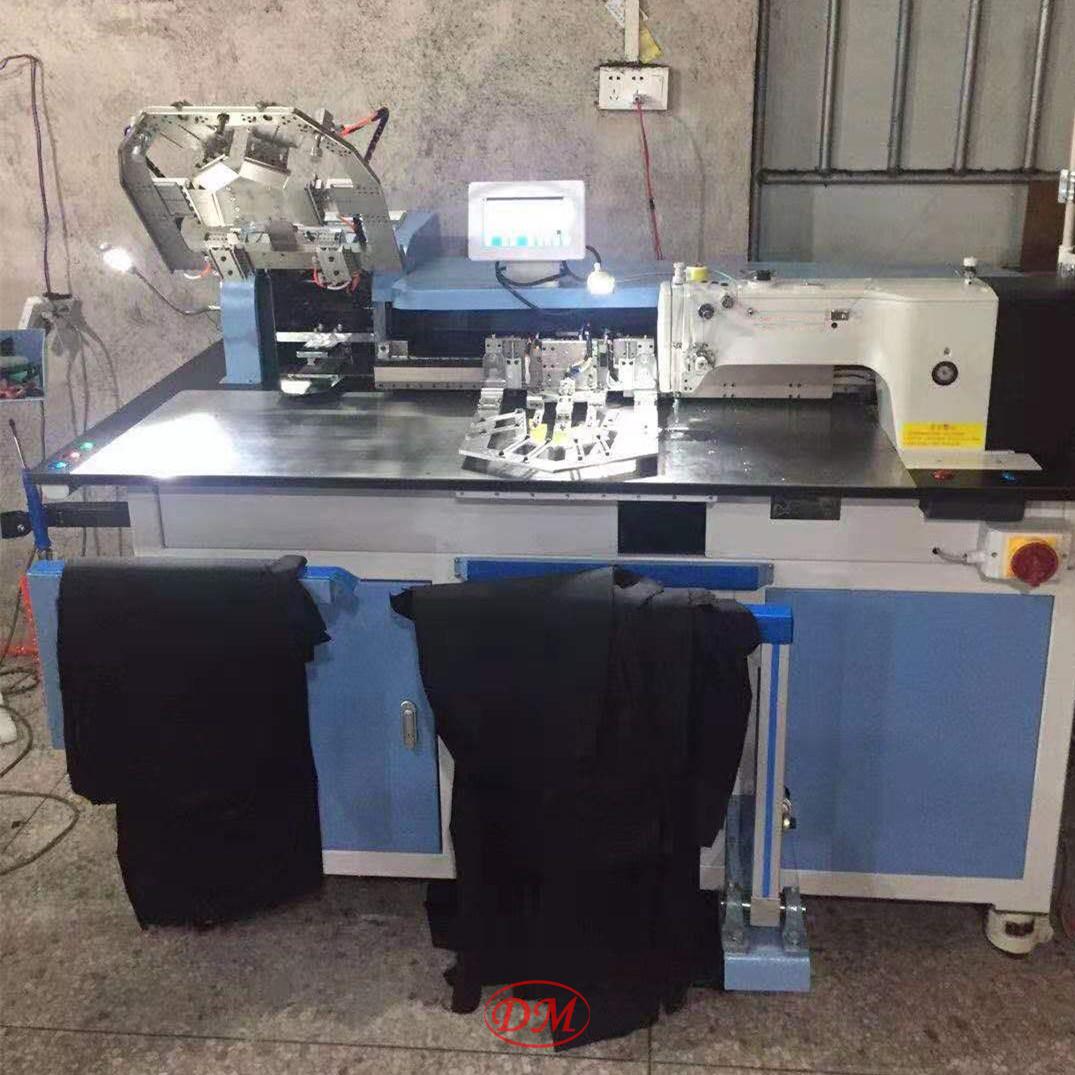

Automatic pocket setter industrial computer pattern patch pocket sewing machine
1. Product Description:
a) automatic industry folding free-iron patch pocket sewing machine.
b) suitable for varieties of shape pockets designs, specially for jean back pockets.
c) save labors and high efficiency, every hour can sew 240 pockets.
d) design and input any patterns by edit program is ok.
f) easy operation, the machine will run automatically once push the button.
g) automatic feeding, folding sewing without any intermittent and automatic collecting materials system.
2. Technical parameters
|
Model: |
DM-2525B |
|
Sewing Speed: |
3500rpm/min, XY moving speed up to 10m/min |
|
Hook: |
Japan Hirose hook or Koban hook, double size ( Triple size for hook optional ) |
|
Computer: |
Use latest A8 CPU, Disk/USB data memory, XYZ servo motor, high accuracy: 0.001mm |
|
Sewing Head: |
Brother 7300A or JUKI 9000 or pattern machine head |
|
Function: |
Thread broken inspection, bottom thread quantity inspection (optional) |
|
Table Surface: |
Stainless steel table (mirror/wire drawing / telfon for optional) |
|
Needle: |
DP*5/DP*17, thickness : 0.1mm-10mm |
|
Applications: |
Jean pocket, Shirt pocket, Woven pocket, Pajamas ect. |
|
Machine dimensions |
193cm x 135cm x110cm |
|
Packing size |
220X160X130cm |
|
|
4.5CBM |
|
N.W. |
400kgs |
|
G.W. |
450kgs |
