Description

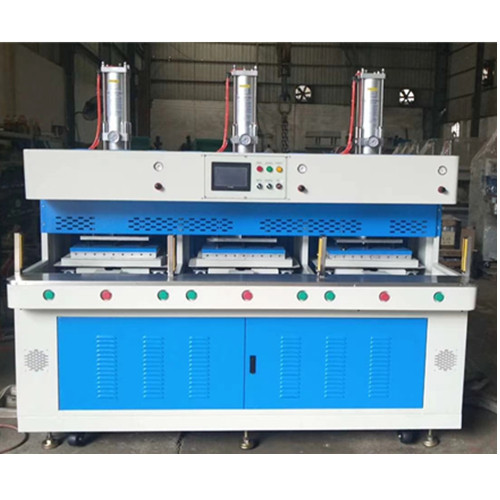

3 stations vaccum welding and embossing machine for upper, leather goods and notebook cover

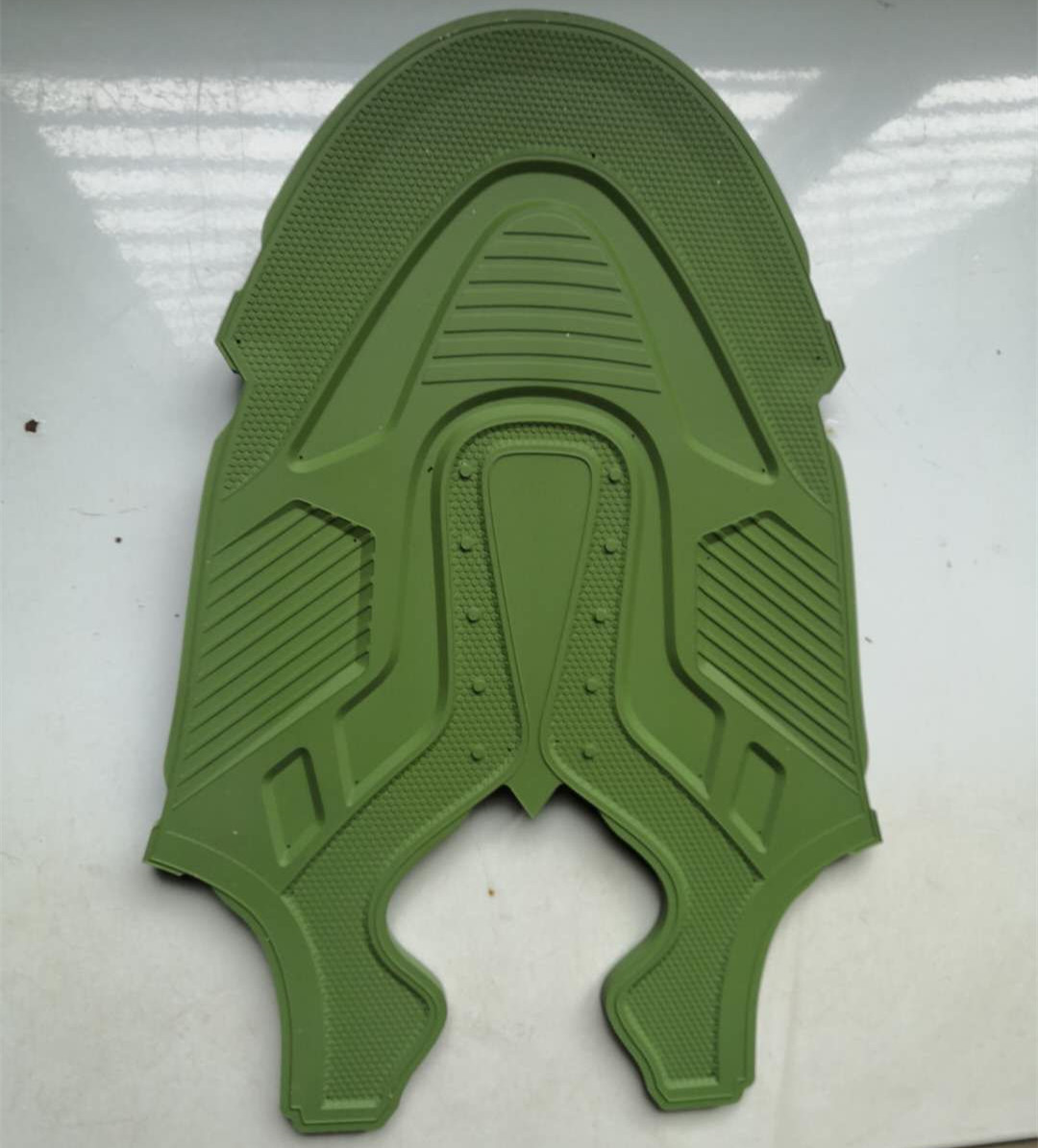

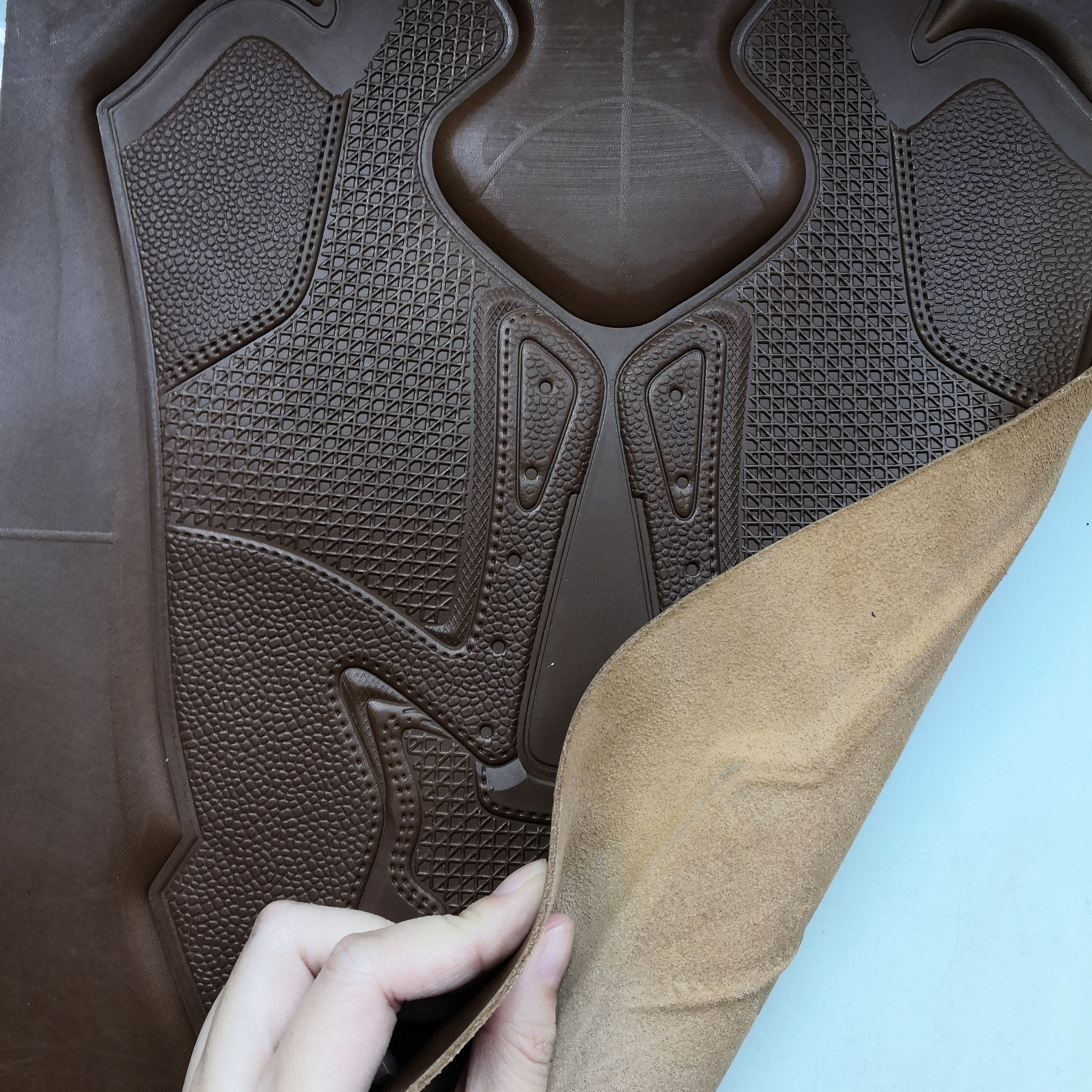

The machine is suitable for shoe different material seamless hot welding process or 3-D molding, such as PU leather, PVC or others artificial leather and genuine leather.
1. Equipped with vacuum working system, shaping effect is better, 3-D construction feeling more better, material still keep soft.
2. To ensure safety, each work stations are equipped with infrared photoelectric control
3.By using intelligent temperature controlling system, easy operation, stable temperature,uniform heat conducting and low heat -consumption
4. Pressing time,temperature controlled and set by digital indicator is adjustable and precise5. Pneumatic drive pressing system, stable, effective and energy-saving, high efficiency.
| Model | DM-891-2 | DM-891-3 |
| Voltage/ 3-phase |
380V /60HZ can be customized |
|
| Working stations | 2 | 3 |
| Capacity | 30-50 pairs/ hour | 30-50 pairs/hour |
| Motor power | 30 KW | 30 KW |
| Max working pressure | 18 Tons | 18 Tons |
| Working area | 500*700mm | 470*370mm |
| Dimensions | 223*118*200cm | 223*118*200cm |
| Packing size | 230*123*220 cm | 230*123*220 cm |
|
|
6CBM | 6CBM |
| N.W. | 1600 KGS | 1600 KGS |
| G.W | 1700 KGS | 1700 KGS |
